Single video files can be added to a layout. Please keep in mind that some player models will only support one video file per layout at a time. It is not recommended that you add multiple video files to a layout. However, multiple video files can be added to a playlist which could then be added to a layout.
We recommend video files have a maximum resolution of 1920×1080 or 1080×1920 for best playback on media players.
Supported Video File Types:
- MP4 – We recommend encoding files to MP4 format for best playback. Please see Encoding Video Files to MP4 with HandBrake Open Source Video Transcoder to MP4 for recommendations on encoding videos to MP4 as H.264.
- WEBM – Files with alpha channels are only supported on LG webOS and Windows devices.
Videos over 50 MB or WMV, MOV, AVI files will be automatically re-encoded to improve performance and to ensure they are in the correct format. Once processing is complete you will receive an email and the asset can be used.
1) From the Home page, click on the ‘Layouts’ icon.
2) Click on the ‘Designer’ icon for the layout you would like to manage.

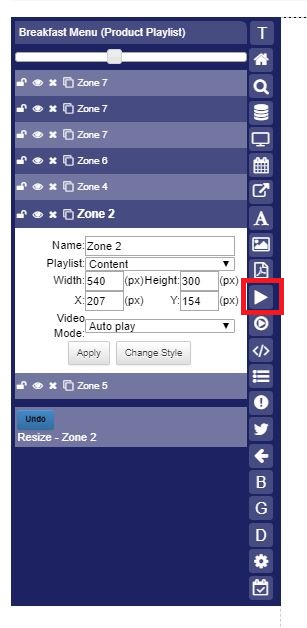

3) From the Designer, click on the ‘Add Video’ icon on the toolbar:

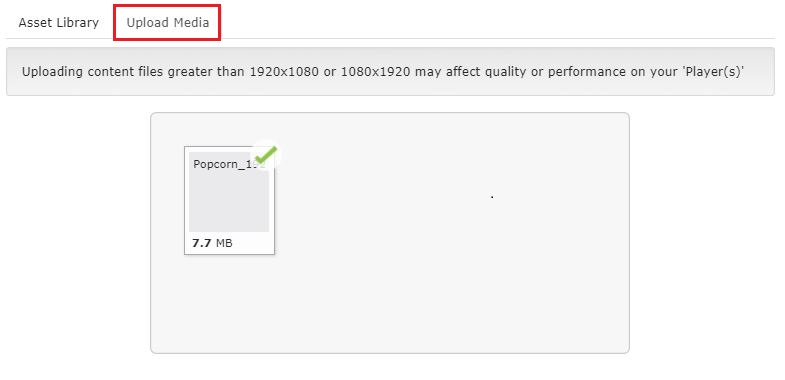

4) If your video file has not yet been added to the Asset Library, click on the ‘Upload Media’ tab and drag and drop the file into the upload box, or click on the upload box to locate the file on your computer. A green status bar will show the upload status and a green check mark will appear once the upload is complete:

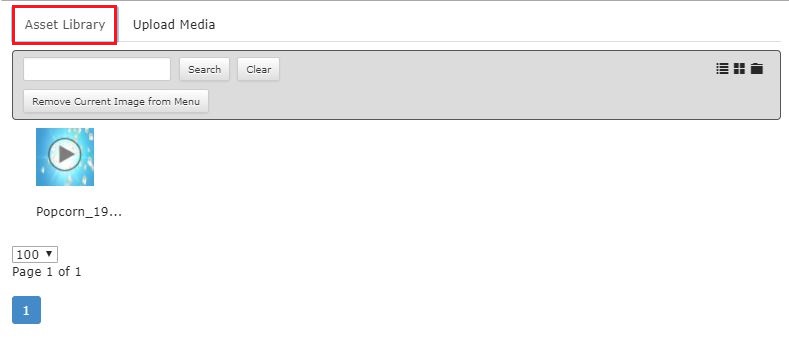

5) Click back on the ‘Asset Library’ tab to click on the file. This will add it to your layout:

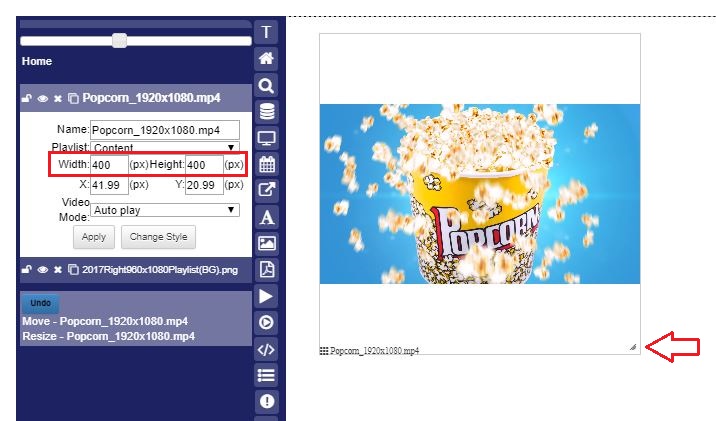

6) If the video is full 1920×1080 resolution it will automatically fit the full resolution of the layout (assuming the layout is 1920×1080). To reduce the size of the video, use the Height and Width options from the layer properties, or drag the edges of the zone to manually resize the video to fit where you want it to display:
